Introduction

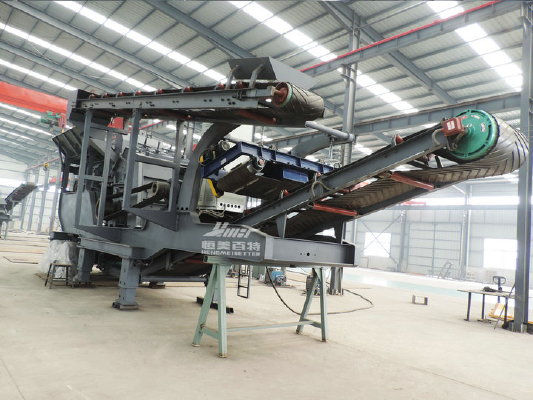

Features of mobile crusher station
· High performance;
· Vehicle-mounted feeder, vibrating screen and belt conveyor;
· Traction steering shaft which is convenient for highway transportation;
· Vehicle-mounted support to make equipment installation in site fast and convenient;
· Integration box for matching power panel and the control box;
· Easy to move & handy compact structure;
· Stable performance, convenient to repair and flexible configuration;
· Cost saving.
- Place of Origin: China
- Brand Name: hengmeibaite
- Model Number: HM0938F1210
Parameters
Model (mm) | HM0938F1210 | HM0938F1214 | HM1149FE1315 | HM1349FE1318Ⅱ |
Conveying lengh (mm) | 12000 | 12000 | 13900 | 15450 |
Conveying width (mm) | 2550 | 2500 | 2900 | 2950 |
Conveying height (mm) | 3900 | 3900 | 4450 | 4500 |
Max. Lenght (mm) | 12500 | 12500 | 13900 | 15450 |
Max. width (mm) | 3250 | 3260 | 3250 | 3250 |
Max. Height (mm) | 5100 | 5200 | 5200 | 5200 |
Weight (T) | 39 | 44 | 54 | 62 |
Model of crusher | PF-1210 | PFE-1214 | PFE-1315Ⅲ | PFE-1318Ⅲ |
Max. feeding partical size (mm) | 350 | 500 | 600 | 700 |
Producing capacity (T/h) | 70-130 | 130-200 | 180-320 | 240-400 |
Model of feeder | GZS950×3800 | GZS950×3800 | GZS110×4900 | GZS130×4900 |
Model of main belt conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B1200×11M |
Model of assist belt conveyor (optional) | B500×3.2M | B500×3.2M | B600×4M | B650×3.2M |
Model of generator (kw) (optional) | 320 | 320 | 400 | 440 |
odel of de-ironing separator (optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
